OX2 (non-phospho) Orexin Receptor 2 Antibody

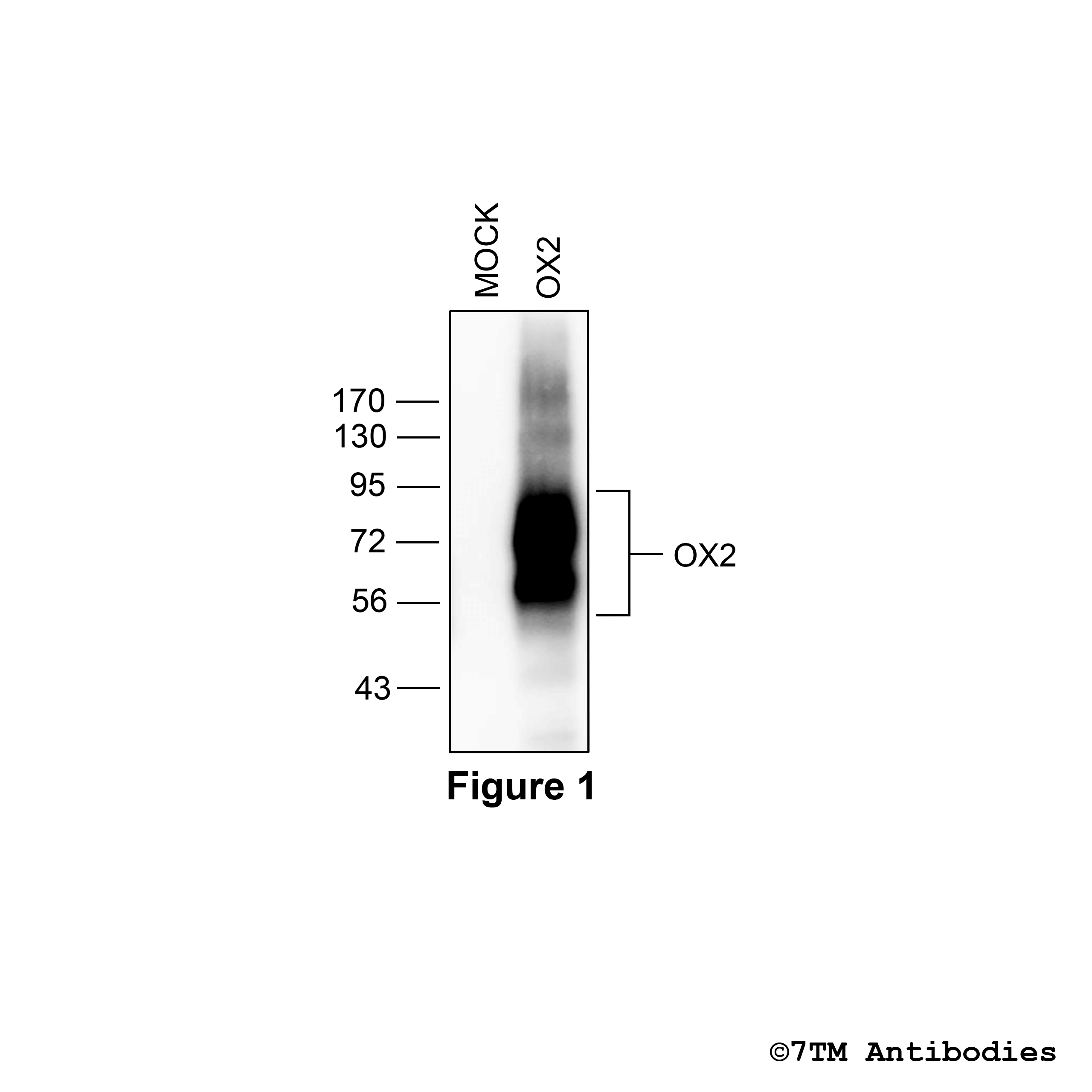

Figure 1. Validation of the Orexin Receptor 2 in transfected HEK293 cells. Native HEK293 cells (MOCK) or HEK293 cells stably expressing the Orexin Receptor 2 (OX2) were lysed and immunoblotted with the anti-OX2 antibody (7TM0322N) at a dilution of 1:1000.

Figure 2. Immunohistochemical identification of Orexin Receptor 2 in pancreas. Sections were dewaxed, microwaved in citric acid, and incubated with anti-OX2 (non-phospho-Orexin Receptor 2) antibody (7TM0322N) at a dilution of 1:100. Sections were then sequentially treated with biotinylated anti-rabbit IgG and avidin-biotin solution. Color was developed by incubation in 3-amino-9-ethylcarbazole (AEC), and sections were counterstained with hematoxylin.

Figure 3. Immunohistochemical varification of Orexin Receptor 2 antibody in pancreas. Sections were dewaxed, microwaved in citric acid, and not exposed (left pannel) or exposed to peptide (right pannel) that was used for production of anti-OX2 (non-phospho-Orexin Receptor 2) antibody (7TM0322N). Sections were then incubated with anti-OX2 (non-phospho-Orexin Receptor 2) antibody (7TM0322N) at a dilution of 1:100 and sequentially treated with biotinylated anti-rabbit IgG and avidin-biotin solution. Sections were then developed in 3,3-diaminobenzidine (DAB)-glucose oxidase and lightly counterstained with hematoxylin. Note, only in sections without peptide incubation OX2 receptors were uniformly detected at the plasma membrane of nearly all cells.

Be the first to analyze the V2 phosphorylation using our anti-pS350-V2 antibody and let us know.
